EE362 Final Project Write-up
Motion Blur Reduction Techniques for Liquid Crystal Displays

Moshe Malkin



Introduction

In recent years Liquid Crystal Displays have become ubiquitous consumer products.  They are slowly but surely replacing the CRT based monitors.  While LCD’s have many advantages in one important aspect they are inferior to CRT based systems; in video motion blur.  There are two main causes for this motion blur problem.  One is the nature of the liquid crystal, which takes time to change its state to desired brightness.  The other cause is the hold type rendering in LCD systems.  The CRT’s can be classified as an impulse based display and as such do not suffer from this motion blur degradation.  Fundamental advances in device technology will slowly eliminate this problem but in the meanwhile innovative solutions must be found.  In this short report I will review LCD technology, discuss the motion blur problem, and examine in detail the Motion Compensated Inverse Filtering solution.



LCD Technology

Liquid crystal was discovered by the Austrian botanist Fredreich Rheinizer in 1888. "Liquid crystal" is neither solid nor liquid (e.g: soapy water).  In the mid-1960s, scientists showed that liquid crystals when stimulated by an external electrical charge could change the properties of light propagation through the crystals.   The early prototypes were unstable for mass production and a stable liquid crystal (biphenyl) was found by British researchers in late 1960’s.

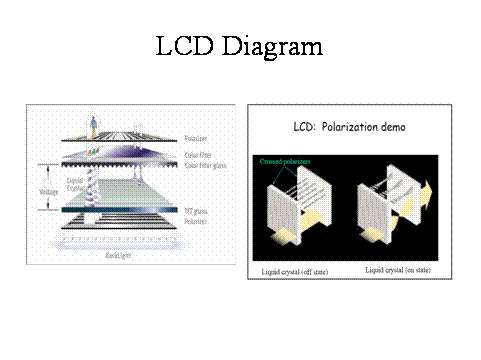

A liquid crystal display (LCD) is a thin, flat display device made up of any number of color or monochrome pixels arrayed in front of a light source.  Each pixel consists of a column of liquid crystal molecules suspended between two transparent electrodes, and two polarizing filters, where the axes of polarity are perpendicular to each other.  Without the liquid crystals between them or with liquid crystal in “relaxed” state, light passing through one filter would be blocked by the other.  The liquid crystal twists the polarization of light entering one filter to allow it to pass through the other.  The twisting is accomplished because the molecules of the liquid crystal have electric charges on them. By applying small electrical charges over each pixel, the molecules are twisted by electrostatic forces and the polarization is changed.

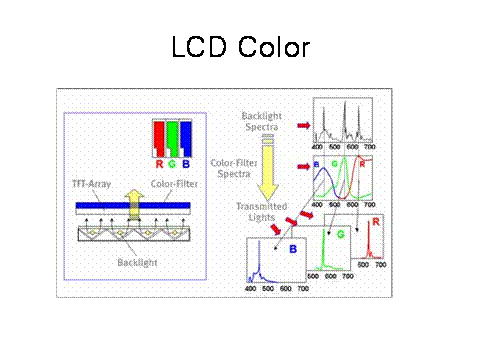

The color filter of a TFT LCD consists of the three primary colors - red (R), green (G), and blue (B) - which are placed on the color-filter substrate.  See next figure.  The elements of this color filter line up TFT pixels.   Each pixel in a color LCD is subdivided into three subpixels, where one set of RGB subpixels is equal to one pixel.





LCD Refresh Rate & Response Time

Response Time is an attribute that applies to LCD monitors. It translates to the amount of time it takes for a liquid crystal cell to go from active (black) to inactive (white) and back to active (black) again.  It is measured in milliseconds (ms), where lower numbers mean faster transitions and therefore less visible image artifacts.  LCD Monitors with long response times would create a smear or blur pattern around moving objects, making them unacceptable for moving video.  However current LCDs monitors have improved to the point that this is rarely seen. The viscosity of the liquid-crystal material means it takes a finite time to reorient in response to a changed electric field.  Another effect is that capacitance of LC changes based on the molecule alignment.  As such, as the LC changes, the voltage also changes and we will not get the brightness we were hoping for



The typical response time for a CRT display is in microseconds.  For an LCD display a figure of 35-50ms for rise and fall times is typical. Response times significantly greater than 50 ms can be annoying to a viewer depending on the type of data being displayed and how rapidly the image is changing or moving.  Because the Liquid Crystal molecules respond slowly to image changes, smearing/blurring affect takes place, with gray to gray (‘mild’) transitions being the worst in this regard.



Refresh rate is the rate at which the electronics in the monitor updates the pixels on the screen (typically 60 to 75Hz).  For each pixel, the LCD monitor maintains a constant light output from one refresh cycle to the next.



Motion Blur



The visual effect of motion blur is a smearing/local distortion of the image.  A slow pixel response time will obviously cause this problem.  However, motion-blur also comes from the 'sample-and-hold' effect: an image held on the screen for the duration of a frame-time blurs on the retina as the eye tracks the (average) motion from one frame to the next.  This results in a “point spreading” and loss of sharpness for fast moving images. It is important to emphasize that hold type blur DOES not take place on the LCD screen but in the human eye – and so in fact cannot be “captured” by a still image – it is a physiological phenomenon.  By comparison, as the CRT electron beam sweeps the surface of a cathode ray tube, it lights any given part of the screen only for a small fraction of the frame time.  More generally, CRTs have “impulse” type displays where the response time is on the order of microseconds – so these motion blur problems are not present for CRT TVs



Also, the motion blur problem only exists for “fast” moving images.  For a relatively static, slow changing, video sequence, there will be no noticeable motion blurring.  The faster the images the more motion blur degradation it is going to suffer.  For slow images, the sample-and-hold and response times are “fast” enough to capture the changes for the slow moving object in video and no distortion in retina reconstruction takes place.



So, we see that there are two causes of motion blurring. We have seen two causes of blurring.  The first is the response time – during which pixel does not change - and the other is he Hold type temporal rendering.  According to studies [Pan I], first factor contributes about 30% to motion blur problem while nature of hold device contributes the other 70%.  First one can mostly be eliminated nowadays using 'overdrive', where device tries to pre-compensate for this effect by applying, even for mild transitions (‘gray-to-gray’), maximum voltage for a short period of time to boost response speed.





Next section will detail methods to eliminate 2nd cause.



Possible Solutions

In general, improvement in basic material technology will make the problem slowly go away.  However, even better materials will not alleviate all problems.  Problems have to do with active-matrix principle itself and the sample and hold characteristic.  Some “low-tech” fixes are:

Data Insertion

Backlight Flashing

Frame Rate Doubling

MCIF - Motion Compensated Inverse Filtering





The Data insertion method inserts a black frame between every two actual frames so real data and black data will each occupy 50% of frame.  So “hold” time will be effectively reduced and this technique is predicted [Pan I] to reduce motion blur by ~ %50.  However, it will require LCD to finish two transitions within a frame which is currently impractical as that will require LCD with twice refresh rate, which is currently impossible.  Also, might cause "ghosting artifact“where shadow image legs behind truly moving image.  Since inserted black data changing with previous displayed value it can not change states quickly within half a frame and so it will look like there’s another “shadow” image on screen, trailing original image.



Backlight Flashing turns off backlight every frame cycle, which is much more feasible than LCD as turning on/off black light is much easier (eg. LED’s) than making LCD rate twice as fast.  Also, one can play with % of time on/off to optimize performance given LCD characteristics.  This method will require that writing data on LCD must be synchronized with backlight duty cycle.  Once again, needs fast LCD to avoid ghosting affect, which is caused by luminance slope in backlight-on periods.



Frame rate doubling Similar to previous solutions as it keeps same hold type rendering but raises frame rate.  Uses motion estimation to interpolate frames and can only reduce motion blur by ~ %50 [Pan 1].  It requires fast LCD's and also requires accurate motion estimation so new frames can be interpolated.  But, does not require fast backlight and has none of the detriments other methods suffer from, such as ghosting.





MCIF

Finally, method I will detail is Motion Compensated Inverse Filtering (MCIF). The derivation of this method uses frequency domain analysis and unlike other approaches, it tries to take into account the Human Visual System (HVS) by considering the eye tracking of the viewer.  The mathematical derivation is presented in the appendix attached.  The surprising conclusions is that the end distortion, taking into account the video signal sampling, the LCD device, and the HVS, is simply a directional low-brick wall low-pass filter.  The filtering direction is the direction of motion.  The filter is purely a function of the velocity vector – so one needs both motion direction and speed in order to calculate the distortion (and compensating filter) correctly.  As such, to undo motion blur distortion, we must filter with an inverse (or approximate inverse for MMSE criterion) along the direction of motion, and take into account speed as well.



This algorithm results in a relatively low-complexity operation as opposed to some other proposed deblurring methods which require the expansive deconvolution operation.  The algorithm heavily depends on good motion estimation methods and good device characterization.



Here are some results that illustrate what algorithm can do when needed.

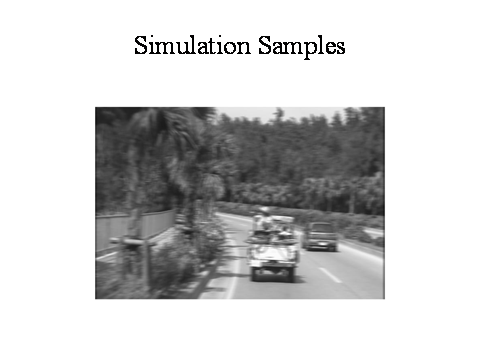

This image represents an approximation of the distortion caused by motion blur:

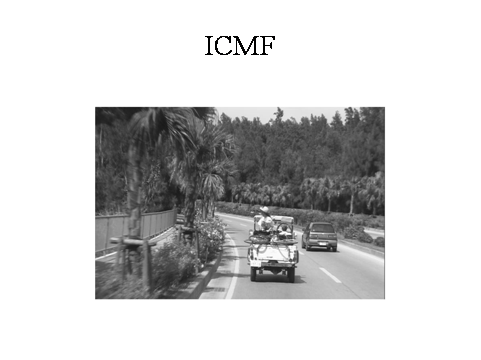

The next image represents what could be done if motion and LCD device filters are known accurately.



I will discuss the simulation/algorithms in more detail in following sections.



Summary

LCD’s have come a long way in terms of offering a complete solution but the sample-and-hold mechanism of the device can still result in motion blur for fast moving objects.  These problems will be solved with fundamental advances but in the meanwhile a few practical solutions were presented, and one in particular, the IMCF, was derived in detail and simulated in matlab.  The other solutions all seem to have required extensive processing (frame rate doubling) or really stretch current limits of technology.  However, the ICMF method offers good tradeoffs in terms of complexity and performance.  However, it does make some very broad generalizations and I am not certain this will really hold in practice.



I learned from this project the important of modeling.  In our little labs, we can come up with many sorts of structures and algorithms to solve a specific problem but because of the physiological aspect of human vision and imaging, it is very difficult to actually figure out which algorithms will do the job and which just look good in theory.  There is no doubt that extensive human testing is required, in my opinion, to lend credence to any of these algorithms.









Methods

In my matlab simulations, I “cheated” by knowing the exact details of the motion/device.  The ICMF approach must have a good model of the device and the HVS mechanisms in order to work well.  To implement it in practice the filter will have to be adaptive/tuned to specific device (assuming the general HVS modeling is good enough).  However, in practice, this is not going to be the case.



As mentioned before, I used matlab to carry out simulation of IMCF and worked with YUV files (slight variant of YCrCb).  My code goes through the video signal frame by frame, estimate motion vector, estimates motion blur resulting from motion, and filters along direction to simulate distortion.

I used a simple algorithm to find the motion velcoty vector: assuming constant motion vector for all pixels in frame, finding the phase difference in the frequency domain between two consecutive frames will result in an exponential function with linear phase over bandwidth.  In time domain this translates to a discrete delta at position indicating velocity vector.  In practice, however, things are not perfect so choose velocity vector corresponding to position with maximum value in time domain.  Skipped some frames to make results more palpable.  The mathematics of this algorithm were left to the appendix.  The matlab files were also attached.
