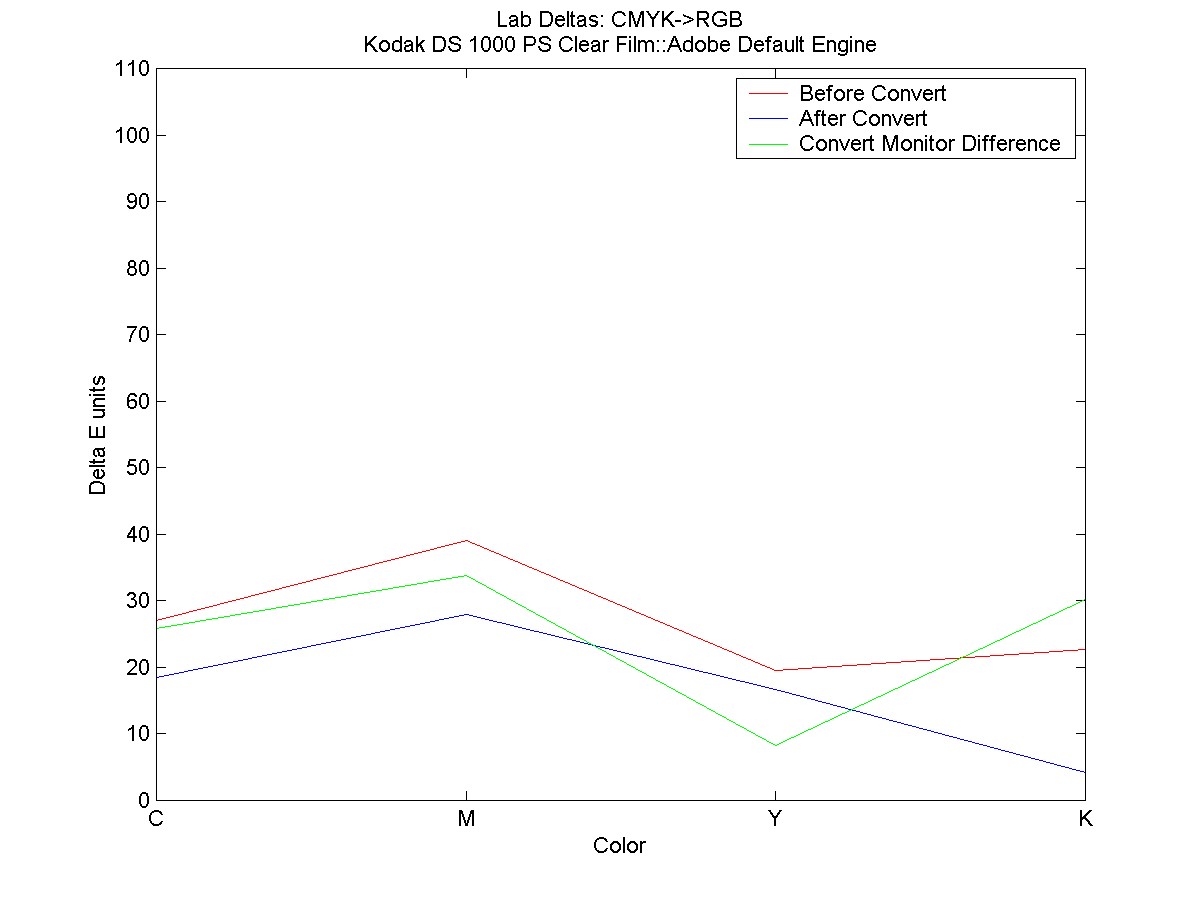

These plots depict the Euclidian distance between Lab values for each color.

The Green plot shows the difference between monitor color values with and without the conversion setting.

The Red plot shows the difference between monitor color values without color conversion and the measured color values of the associated printout.

The Blue plot shows the difference between monitor color values before the conversion and the measured color values of the associated printout after the conversion.
