Psych 221 Final Project
Optimizing Perceptual Quality in JPEG Coded Images
by Brad Johanson
March 13, 1998
Introduction
Typically, the Signal to Noise Ratio (PSNR) or Mean Square Error (MSE)
are used to evaluate the quality of a compressed image, which makes sense
from a signal processing perspective. Since most image consumption
is by the human eye, however, this doesn't make a lot of sense as a measure
of quality in real world situations. Specifically, the human eye
tends to be less sensitive to high spatial frequencies, and certain wavelengths
of light. One area where high frequency information is important
to humans, however, is at edges in images which are thought to be crucial
in scene segmentation.
The goal of this project was to look at ways of modifying the JPEG compression
standard to create images that look better to the human eye, while maintaining
a similar bit rate. Standard JPEG and two modifications to it were
examined. The first modification is a process developed at NASA Ames
known as DCTune which attempts to optimize the quantization coefficients
in JPEG to achieve a certain perceptual quality. The second was developed
for this project and involves sending higher quality information for edge
areas of the image, which hopefully will make images more intelligible.
For four standard images, each of the three types of compression were
applied, and both PSNR and S-CIELAB error were examined. S-CIELAB
is a system developed by Wandell and Zhang which attempts to take into
account image blurring in the eye in determining how well color values
in two images agree. For one of the images, the error measures were
looked at across differing levels of compression. High resolution
versions of all images are embedded in this page so that the viewer can
determine for themselves which are the most pleasing.
Basic JPEG Compression
Paint Shop Pro 4.10 was used to compress the images with the un-modified
JPEG scheme. Paint Shop Pro uses a "Quality" parameter to control
compression which can be set from 1 to 99, where 1 is highest quality,
and 99 is the worst quality.
Paint Shop Pro is available for Windows 3.1, Windows 95 and Windows
NT from: http://www.jasc.com
DC Tune
DC Tune is a program written at NASA Ames Vision Research Center.
It has a built in perceptual image quality measure, and it tries to optimize
the DCT quantization coefficients to achieve a certain perceptual quality
at the best possible compression ratio. The perceptual measure, P,
goes from 0 to infinity, with 1 being perceptually lossless, and infinity
being very different perceptually. Another mode of the program optimizes
perceptual quality at a given compression ratio.
The DC Tune Website can be found here: http://vision.arc.nasa.gov/dctune/dctune1.1.html
S-CIELAB
The CIELAB system predicts how well colors match each other perceptually.
S-CIELAB is an extension to the system by Wandell and Zhang which takes
into account the spatial sensitivity of the eye. By specifying the
number of pixels per degree of arc, the system takes into account blurring
in the eye to determine what colors are perceived over regions of the image.
This is then compared to the original image to determine the amount of
CIELAB perceptual error between the color in the original and compressed
image. In this project the average error across the whole image is
used.
Matlab source for S-CIELAB can be found here: ftp://white.stanford.edu/scielab/scielab-1.1.tar.gz
Edge Enhancement Method
Although the human eye is less sensitive to high spatial frequencies, edges
are thought to be important in aiding the human brain to segment images.
My idea was to compress the image more, eliminating higher spatial frequencies,
and then send a separate edge mask with the image information at edges
in the image. This way, high frequency background texture which is
less important is traded for more high frequency information at the edges
of the image.
The compression algorithm is as follow:
-
Extract the Y Color Plane from the uncompressed Image
-
Use a Prewitt Edge Detector to find the edges in the image.
-
Dilate the edge mask by some amount (4 was used in all images for this
project)
-
Let JSize, the target JPEG size = the target image size, TSize
-
JPEG Compress the image to size JSize
-
Extract the Y plane of the compressed image
-
Subtract the Y plane of the compressed image from the uncompressed Y plane
to create an error image
-
Quantize the error image to some number of levels (16 for this project)
-
Mask the error image using the mask from step 3
-
RLE and entropy code the masked error image
-
Let MSize be the size of the compressed masked error image
-
If MSize+JSize > TSize, set JSize=TSize-MSize, goto step 5
-
Done: Compressed masked error image and compressed JPEG are the Edge Enhanced
JPEG
For decompression:
-
Decompress the JPEG part and split into Y, Cr, and Cb planes
-
Decompress masked error image and add into Y plane
-
Combine Y, Cr, and Cb planes to create R, G, B values
The rest of this section walks through the process for the 'hats' image
with a target size of 15KB.
 |
 |
The Original Hats Image and Y Plane
First, the Y plane is extracted from the original image. An edge
mask is created and dilated. Then a compressed JPEG is created, and
the Y plane extracted from that:
 |
 |
The Compressed JPEG Image and Y Plane
Now an error image is calculated and masked using the edge mask created
earlier:
 |
 |

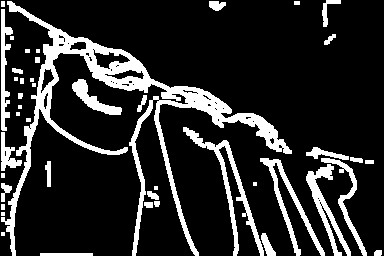

The Edge Mask and Masked Error Image
The size of the quantized masked error image after compression is computed,
and the past two steps are repeated until the size of the JPEG and compressed
mask together meet the target size.
Finally, after storage or transmission, the image is reconstructed by
adding the masked error image into the compressed Y Plane, and the final
image is created.
 |
 |
The Error Compensated Compressed Y Plane and the Final Edge Enhanced Image
The code written to perform this process is available in the following
gzipped tar file: edge-jpeg.tar.gz
The files are:
-
maskSize.m - calculates the size of the edge masked error image if RLE
and entropy coding were used.
-
createJpeg.m - iteratively calls jpgwrite at different quality levels until
a JPEG of the desired size is created. Requires the ISEP toolbox
for JPEG write routine.
-
tif2bjpeg.m - converts a TIF image into a edge-enhanced jpeg, saving a
minimally compressed JPEG version of the result of decoding the edge-enhanced
JPEG. Depends on the Matlab image toolbox, and ISEP toolkit (for
displaying and loading images).
-
scieError.m - calculates the average, maximum, and minimum error between
a TIFF original and a JPEG compressed image using S-CIELAB. Requires
Matlab image toolbox and the S-CIELAB toolkit (ftp://white.stanford.edu/scielab/scielab-1.1.tar.gz)
-
imageSNR.m - calculates the SNR for an original TIFF image and a compressed
JPEG image.
-
errorGraphs.m - calculates SNR and S-CIELAB values for all the images,
and creates the graph of SNR and S-CIELAB Error vs. Bit-Rate. Depends
on imageSNR.m and scieError.m
Results
This section contains results. Four different images were compressed
using the various techniques, and the Average S-CIELAB errors and PSNRs
were calculated. All images are 384x256 and are taken from 24-bit
color Photo CD originals. All images are copyright (c) by Eastman
Kodak Company, 1991, and are used according to the access terms outlined
on the original photo disc. The credits for the images are
as follows:
|
Parrots
Photographer: Steve Kelly
Location:
Maui, Hawaii, USA
|
Island
Photographer: Don Cochran
Location:
Bahamas
|
|
Hats
Photographer: Don Cochran
Location:
Bahamas
|
Buildings
Photographer: Alfons
Rudolph
Location:
Essligen, GERMANY
|
Photographer Information for the Four Test Images
The first series shows the compression of the 'parrots' image. It
was compressed using DCTune, the standard compression in Paint Shop Pro,
and my edge-enhanced method for each of four file sizes. The file
sizes were determined by using a Q factor of 25, 50, 75 and 99 in Paint
Shop Pro, then forcing the other compressors to create files of equal sizes.
Recall that lower Q factors imply less compression, and therefore higher
quality. For each file size, the original is shown, along with the
output of each compressor, and the PSNR and S-CIELAB errors (assuming a
72 dpi screen viewed at 18 inches).
Original Parrot Image
|
DCTune Optimized (P=0.72)
S-CIELAB Error: 2.2
PSNR: 29.0
|
Standard JPEG Compressed (Q=25)
S-CIELAB Error: 1.5
PSNR: 31.1
|
Edge Enhanced JPEG
S-CIELAB Error: 2.0
PSNR: 28.4
|
13 Kbyte Parrot Images, 1.1 Bits/Pixel, 21.9x Compression
At 13Kbytes, or 21.9x compression there is very little quality loss
in any of the images.
Original Parrot Image
|
DCTune Optimized (P=1.29)
S-CIELAB Error: 3.2
PSNR: 26.8
|
Standard JPEG Compressed (Q=50)
S-CIELAB Error: 2.1
PSNR: 28.7
|
Edge Enhanced JPEG
S-CIELAB Error: 2.6
PSNR: 27.6
|
9 Kbyte Parrot Images, 0.7 Bits/Pixel, 34.3x Compression
At 34.3x compression, some loss is noticeable, mainly as mosquito-noise
around the edges of objects. It is still difficult to tell the difference
between the three compression types.
Original Parrot Image
|
DCTune Optimized (P=1.77)
S-CIELAB Error: 5.5
PSNR: 23.6
|
Standard JPEG Compressed (Q=75)
S-CIELAB Error: 3.2
PSNR: 26.4
|
Edge Enhanced JPEG
S-CIELAB Error: 5.3
PSNR: 24.7
|
6 Kbyte Parrot Images, 0.5 Bits/Pixel, 48x Compression
At 48x compression, all of the compressed images are starting to look degraded.
While the other two are looking blurrier all over, the edge-enhanced image
shows a severely degraded background. Good definition remains around
the edges of the heads and in the eye areas of the parrots for the edge-enhanced
image, however.
DCTune Optimized (P=13.38)
S-CIELAB Error:14.1
PSNR: 17.8
|
Standard JPEG Compressed (Q=99)
S-CIELAB Error:14.3
PSNR: 17.6
|
2 Kbyte Parrot Images, 0.2 Bits/Pixel, 120x Compression
At 120x, or maximum compression, the images are horribly distorted.
An edge-enhanced image could not be created, since the compressed JPEG
part of the image already takes up the full size required for the image,
and there is no space for the compressed edge masked error image.

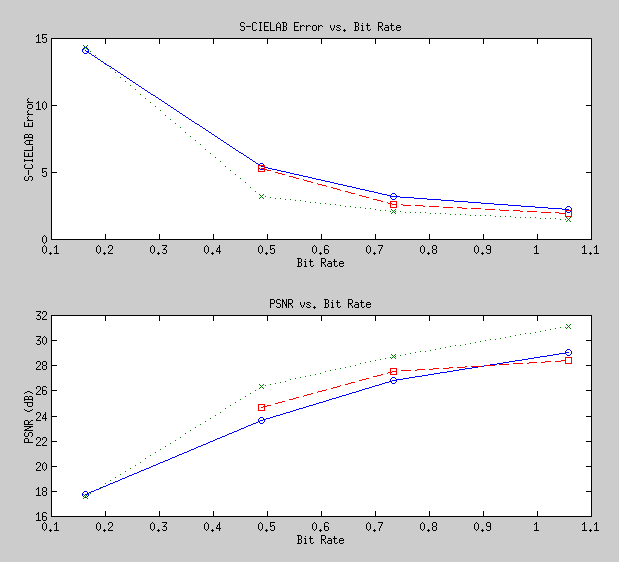

(Blue=DCTune, Green=Standard JPEG (PSP), Red=Edge Enhanced JPEG)
|
The Error Rates for the Parrot Pictures
The above graph shows how the images faired in PSNR and S-CIELAB error
for the four compression amounts used for the 'parrot' and illustrated
in the past figure series. It is interesting to note that the JPEG
compression used by Paint Shop Pro does the best on both measures, while
it is supposed to be the standard compression scheme. I suspect that
Paint Shop Pro is actually doing some optimization of its own; the other
option is that DCTune really is not able to do any better than standard
JPEG. The other interesting thing is that the Edge-Enhanced JPEG
technique does better than DCTune on the S-CIELAB measure at every compression
level, and does better at SNR on the two lower bit rates. This is
a little suspicious, however, since at a bit rate of 0.5 bits/pixel, the
edge-enhanced image is visually worse than the other two. This gives
further evidence of how difficult it is to come up with a reasonable measure
or perceptual quality.
More Images
The rest of this section shows the result of compressing the other three
images using the various techniques at the size resulting from a quality
factor of 75. This was chosen since it is creates images which are
compressed to the level where loss is perceptible, but not overwhelming.
Original Buildings Image
|
DCTune Optimized (P=3.32)
S-CIELAB Error: 7.4
PSNR: 22.2
|
Standard JPEG Compressed (Q=75)
S-CIELAB Error: 4.3
PSNR: 22.6
|
Edge Enhanced JPEG
S-CIELAB Error: 8.9
PSNR: 20.4
|
13 Kbyte Building Images, 1.1 Bits/Pixel, 21.9x Compression
The 'buildings' image is a tough one to compress, since there is a lot
of high frequency information in the lines on the buildings. There
is a large discolored region in the upper left of the DCTune image, and
the edge masked error image was so large (because of the many edges) that
the JPEG part had to be compressed at near maximum level, causing severe
distortion, especially for color which is almost completely washed out
in many areas, like the green building. Interestingly the Paint
Shop Pro standard JPEG compression looks pretty good, with only a little
mosquito noise.
Original Hats Image
|
DCTune Optimized (P=1.77)
S-CIELAB Error: 6.2
PSNR: 22.8
|
Standard JPEG Compressed (Q=75)
S-CIELAB Error: 3.1
PSNR: 25.2
|
Edge Enhanced JPEG
S-CIELAB Error: 8.3
PSNR: 20.9
|
6 Kbyte Hat Images, 0.5 Bits/Pixel, 48x Compression
A similar situation happens with the hats. Notice the distorted colors
in the upper right of the DCTune image. The edge-enhanced JPEG is
once again very distorted in regions without the edge error added back
in. The benefit of the edge-enhancement technique is clear though
if you look at the text on the yellow hat which is clearest in the edge-enhanced
image.
Original Island Image
|
DCTune Optimized (P=2.93)
S-CIELAB Error: 7.4
PSNR: 24.0
|
Standard JPEG Compressed (Q=75)
S-CIELAB Error: 2.8
PSNR: 26.5
|
Edge Enhanced JPEG (7Kbyte- 6 Not Attainable)
S-CIELAB Error: 7.4
PSNR: 22.7
|
6 Kbyte Island Images, 0.5 Bits/Pixel, 48x Compression
A similar story is seen again for the 'island' image. Notice how
DCTune has caused a big glitch in the light patch below the island in the
center right of the image. Paint Shop Pro again does a remarkably
good job with the colors and keeping transitions from begin too blocky.
The edge-enhanced image was not able to get to a 6Kbyte file size as it
would have required the JPEG part of the image to be compressed to smaller
than the lowest quality to allow space for the masked error image.
The effect of the masked error image is clear though, as the palm trees,
cloud, and patches of the water are well defined. Unfortunately the
distortion in the rest of the image makes the perceptual quality unacceptable.
Conclusion
This project bore some interesting results. First, it was interesting
to find that the supposedly standard JPEG compression included in Paint
Shop Pro was able to do a better job on the images than either of the two
optimized schemes. My hypothesis is that Paint Shop Pro is using
some sort of optimization of its own. The second interesting result
was that DCTune, which is supposed to optimize perceptual quality caused
significant color distortion patches compared to Paint Shop Pro, and in
some cases the edge-enhanced images. My guess is that DCTune optimizes
for spatial frequencies, but not color matching-- an important oversight
on the part of its designers.
Finally, the edge-enhanced JPEG technique developed shows promise, but
did not perform as well as expected. At high bit-rates, the additional
information coded in the edge masked error image was not noticeable, and
at lower bit rates, the masked error image took up so much space that the
rest of the JPEG had to be coded at a very degraded quality. Still,
at these low bit rates the edge masked error image did significantly benefit
some critical areas of the image, such as the text on the hat in the 'hats'
image, and the palm trees in the 'island' image. Currently lossless
coding is used for the masked error image. It may be possible to
improve the scheme by using lossy coding at a higher quality on the masked
error image, and a lower quality for the rest of the JPEG which might allow
an apparently higher quality image to be constructed at the same bit rate
as a standard compressed JPEG.
Page by bjohanso@stanford.edu
